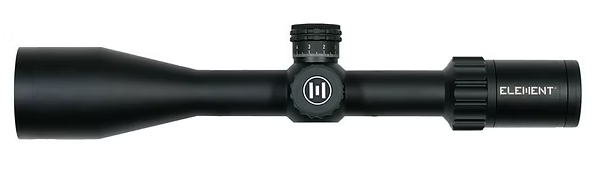

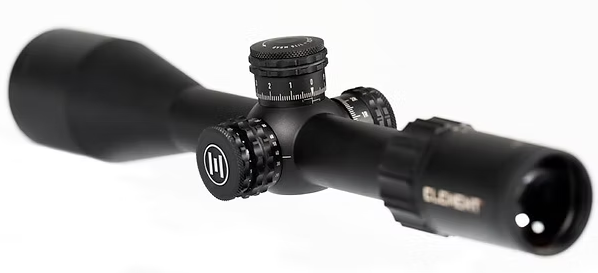

Element Optics | Nexus 5-20x50 FFP APR-1D MRAD Riflescope
The word “NEXUS” means “focal point”, and that is what this model is to the ELEMENT OPTICS range.
The Nexus combines intuitive features like tool-free tactical turrets, zero stop and a removable throw lever with precision engineering to bring you the ultimate 30mm riflescope.
- 30mm Main Body Tube
- Compact
- Lightweight design
- Illuminated
- First Focal Plane Reticle
- Aircraft Grade Aluminum
- Side Parallax: 10yds-Infinity
- Advanced Fully Multi-Coated Lenses with Anti-Fouling Layer

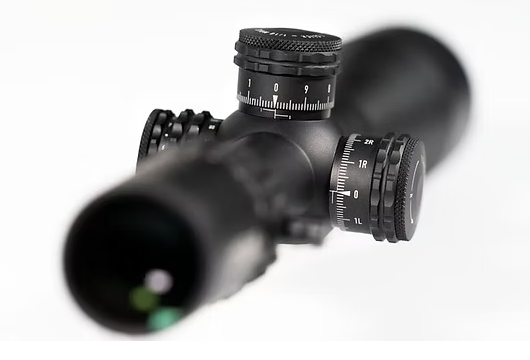

- Tool-free Resettable Turrets with 10 MRAD / 20 MOA per Revolution
- Hard Mechanical Zero-Stop
- Removable Magnification Throw Lever
- Waterproof
- Fog proof
- Shockproof & Nitrogen Purged
Sunshade, Lens Cloth & Neoprene Cover included.
| MAGNIFICATION RANGE | 5-20x |
| TUBE DIAMETER | 30mm |
| OBJECTIVE LENS DIAMETER | 50mm |
| EXIT PUPIL | 8-2.5mm |
| EYE RELIEF | 77-93mm |
| FIELD OF VIEW | @100yds: 23.3-5.8 ft | @100m: 7.8-1.9m |
| CLICK VALUE | 1/4 MOA (20 MOA / REV) | 1/10 MRAD (10 MRAD / REV) |
| ELEVATION ADJUSTMENT RANGE | 80 MOA | 23.2 MRAD |
| WINDAGE ADJUSTMENT RANGE | 50 MOA | 14.5 MRAD |
| MINIMUM PARALLAX | 10 YDS | 10 METERS |
| LENGTH | 13.8” | 350mm |
| WEIGHT | 28oz | 794gr |
